Cell Site Enclosures

Our cell site enclosure program offers flexibility in design to ensure the requirements for your site will be met. The enclosures may be used as individual stand-alone enclosures or combined on-site to create custom site solutions. Applications: Power Cabinets Battery Cabinets Equipment Cabinets Combination Cabinets Modular Designs Multi-Chamber Cabinets Walk-Ins

Common Products:

Our typical cell site enclosures fall into several common categories. While there are common features for each category we take pride in our ability to provide customized products to fit your needs. Common Standard Features: Type 3R certified enclosure (US & Canada)1/8" Aluminum construction Front Hinged Door, Rear Bolt-on DoorIntrustion alarms (Front and Rear)Mounting plinth with cable entrance ports Removeable top mounted lifting rings.
Single Chamber Enclosures
Single chamber enclosure on a plinth. Suitable for any application; Power, Battery, Equipment or any combination of applications. Click for more information
Panelboards
Service Entrance Panel / Transfer Switches certified for the US and Canada. 100A & 200A single or three phase. Click for more information
Multi Chamber Enclosures
The Multi-Chamber enclosure is a complete solution for all applications in one cabinet. Reduce redundant expenses with this shared footprint. Click for more information
Special Purpose
Special purpose is our specialty. Pole Mount enclosures, macro sites, ground level radio enclosures, walk-ins. You dream it and we can build it (and likely have).
Available Options:
  • 6k - 10k BTU air conditioner with 1500w integrated heater
  • DC Power System Installation, Setup and Testing
  • Intelligent DC Thermal system w/ remote access and SNMP (can be supplemental or primary climate control)
  • Controlled intake and exhaust dampers, 2x 400W DC Heaters, a system controller and Touch-screen LCD display.
  • Outdoor LED lighting
  • Retractrable Rain / Snow Hood
  • Internal LED Lighting
  • Laptop / Work tray mounted on the inside of the front door
  • Factory installed Service Entrance Panel / Transfer Switch
  • Add-on Battery Shelves
  • Quick Connect Kits for connecting remote cabinets.

Single Chamber Enclosures

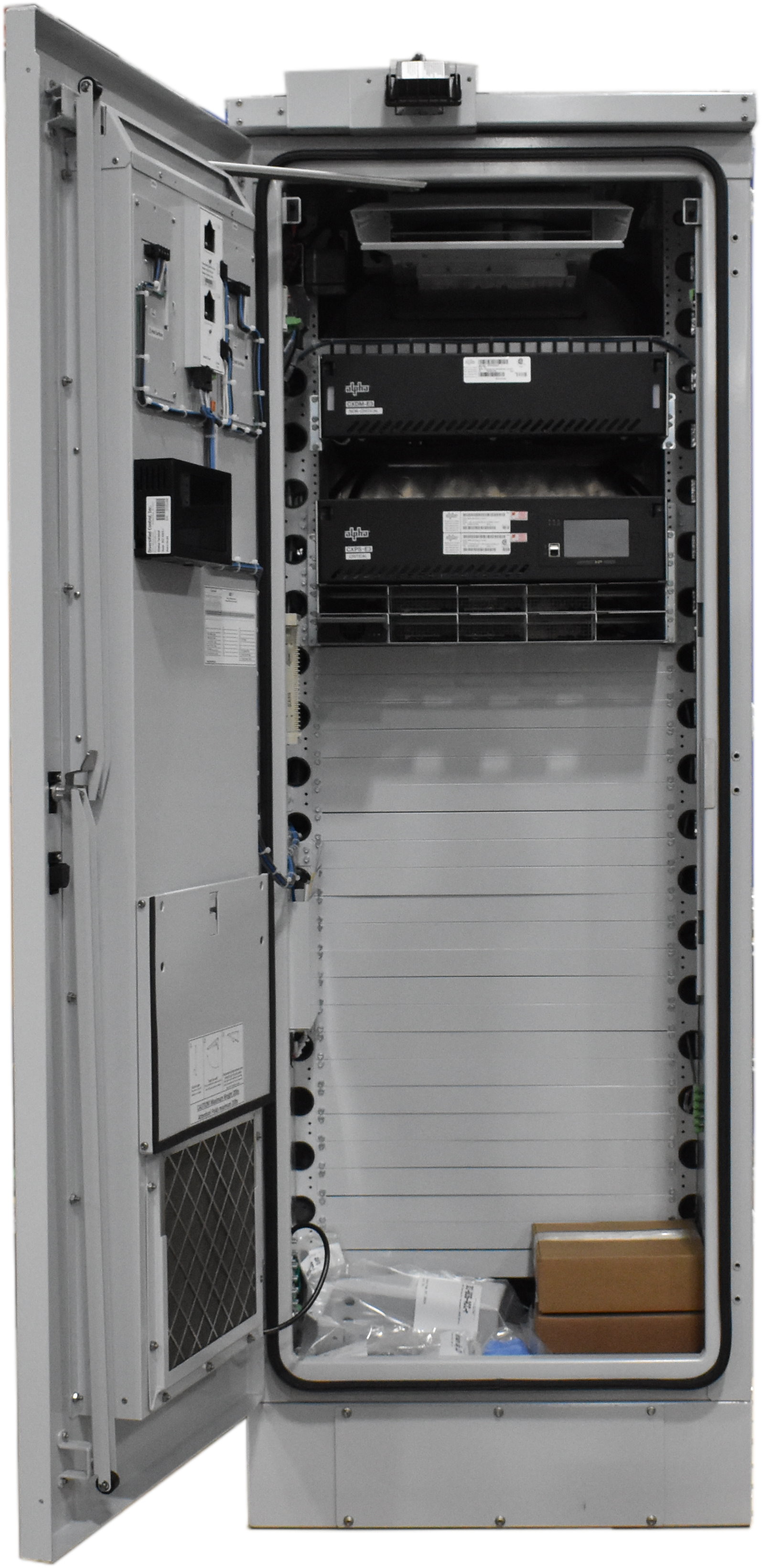

  • Power Cabinet
  • DC Power System (Customer Supplied, Factory Installed and Tested).
  • 24RU x 23" Rack Space (based on 10RU power system)

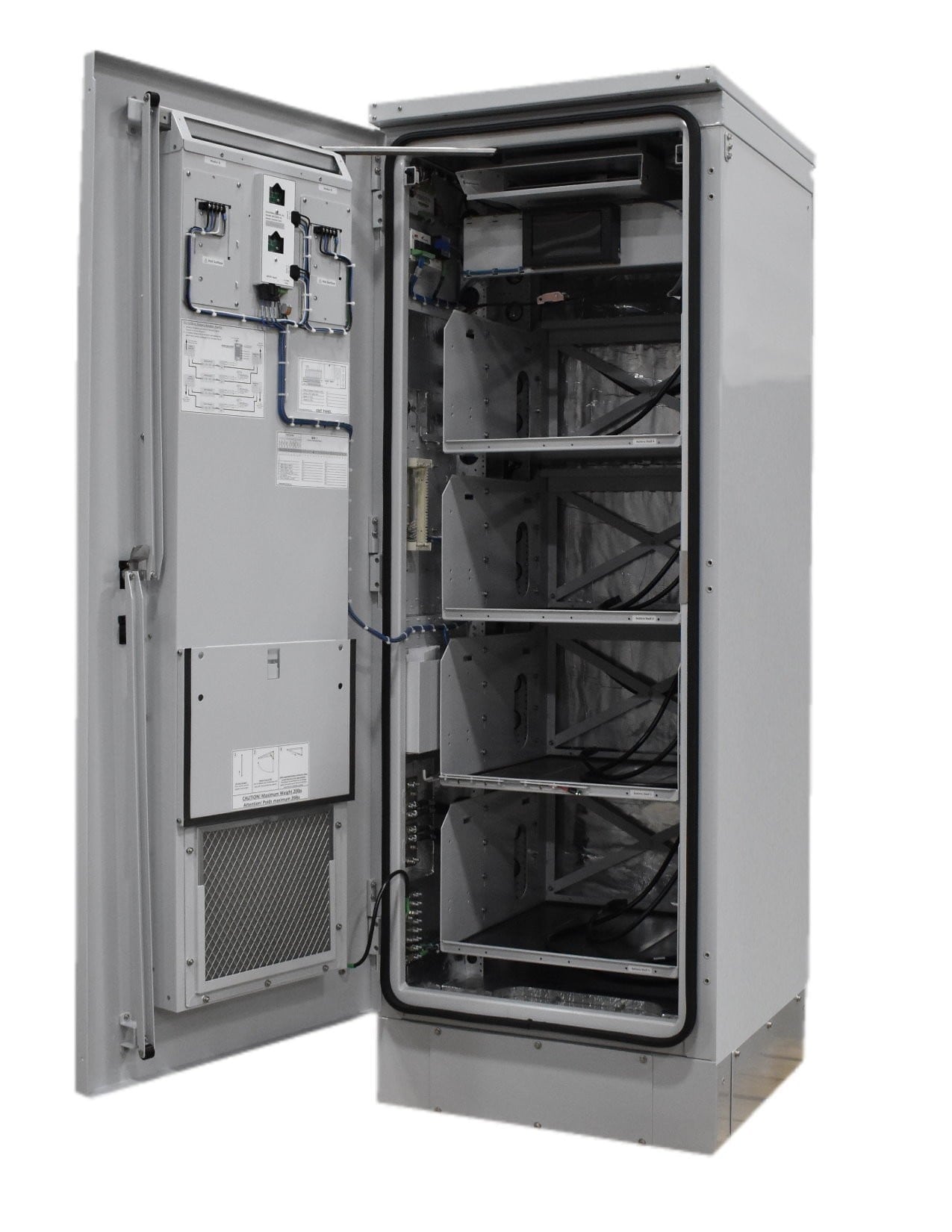

  • Battery Cabinet
  • Four Battery Shelves with Breakers and Alarm Output Battery Bus connections for remote power cabinet.
  • Distribution, Equip & Battery Cabinet
  • 20 Position -48VDC Distribution (300A)
  • 2 Battery Shelves
  • 11 RU x 23" Rack space

  • Power, Equip & Battery Cabinet DC Power System (not included) 2 Battery Shelves 7 RU x 23" Rack space
  • (rack space based on 10RU power system)
Power, Equipment and Battery Cabinet with Radio Shroud Addon Add on radio shroud for ground level installation of radios and splitters (can be used on all single chamber enclosures).

Multi Chamber Enclosures

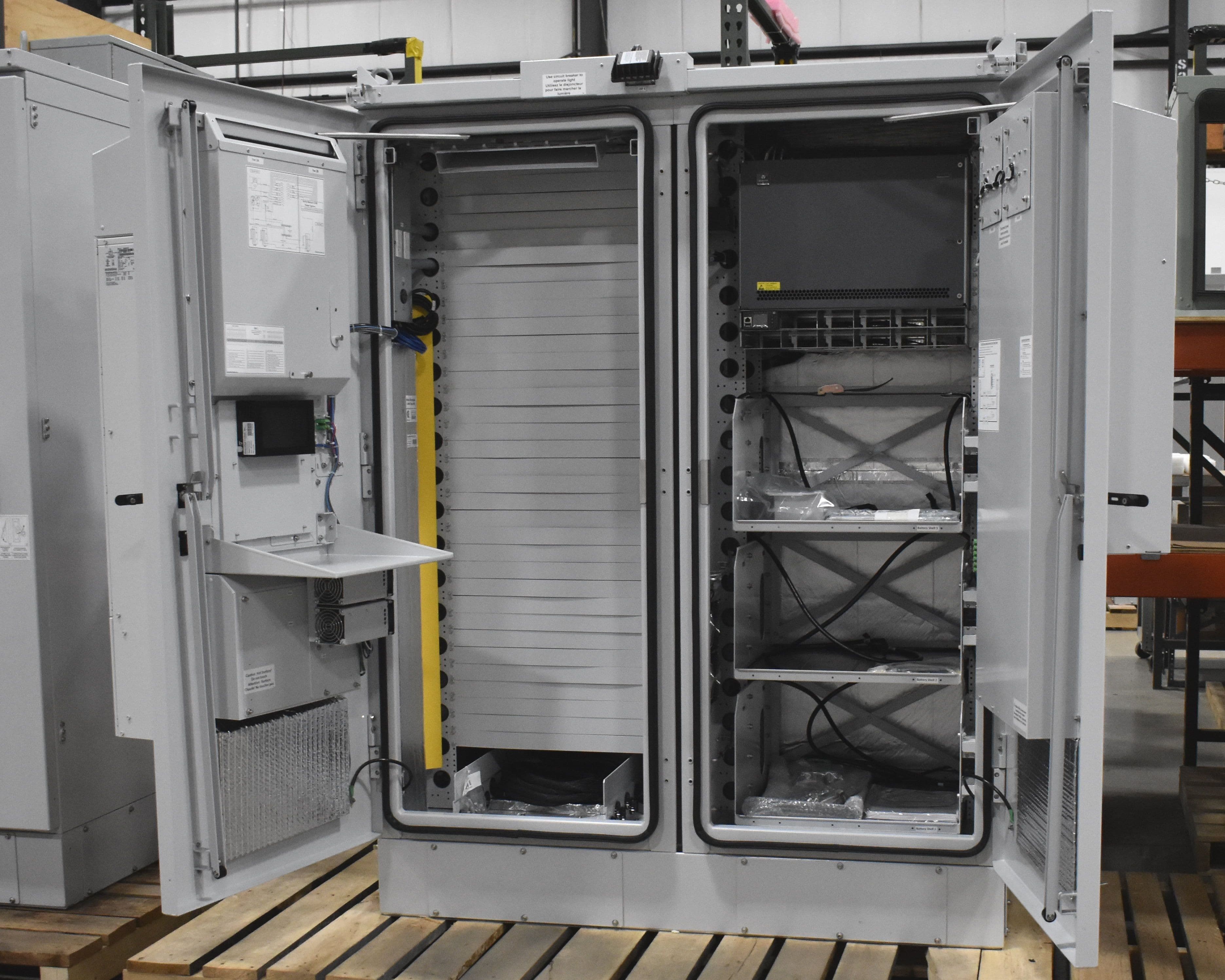

  • Full purpose
  • DC Power System (not included).
  • 3 Battery Shelves (fourth shelf in the left chamber is optional).
  • 32-34 RUx 23" Rack space in left chamber for equipment.

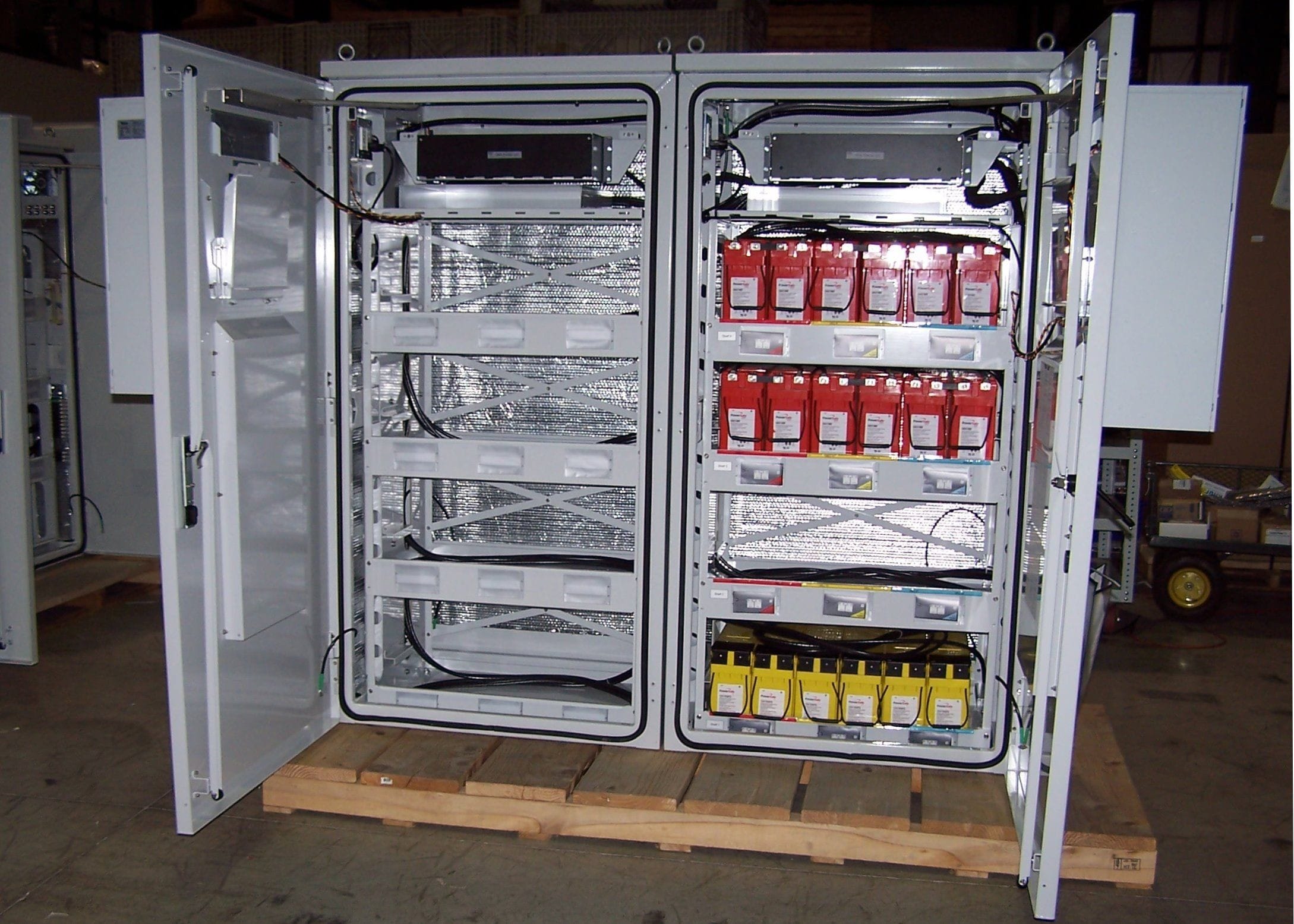

  • Battery Cabinet
  • Double Wide Battery Backup Cabinet.
  • Up to 12 strings at 48VDC or 24 strings at 24VDC.

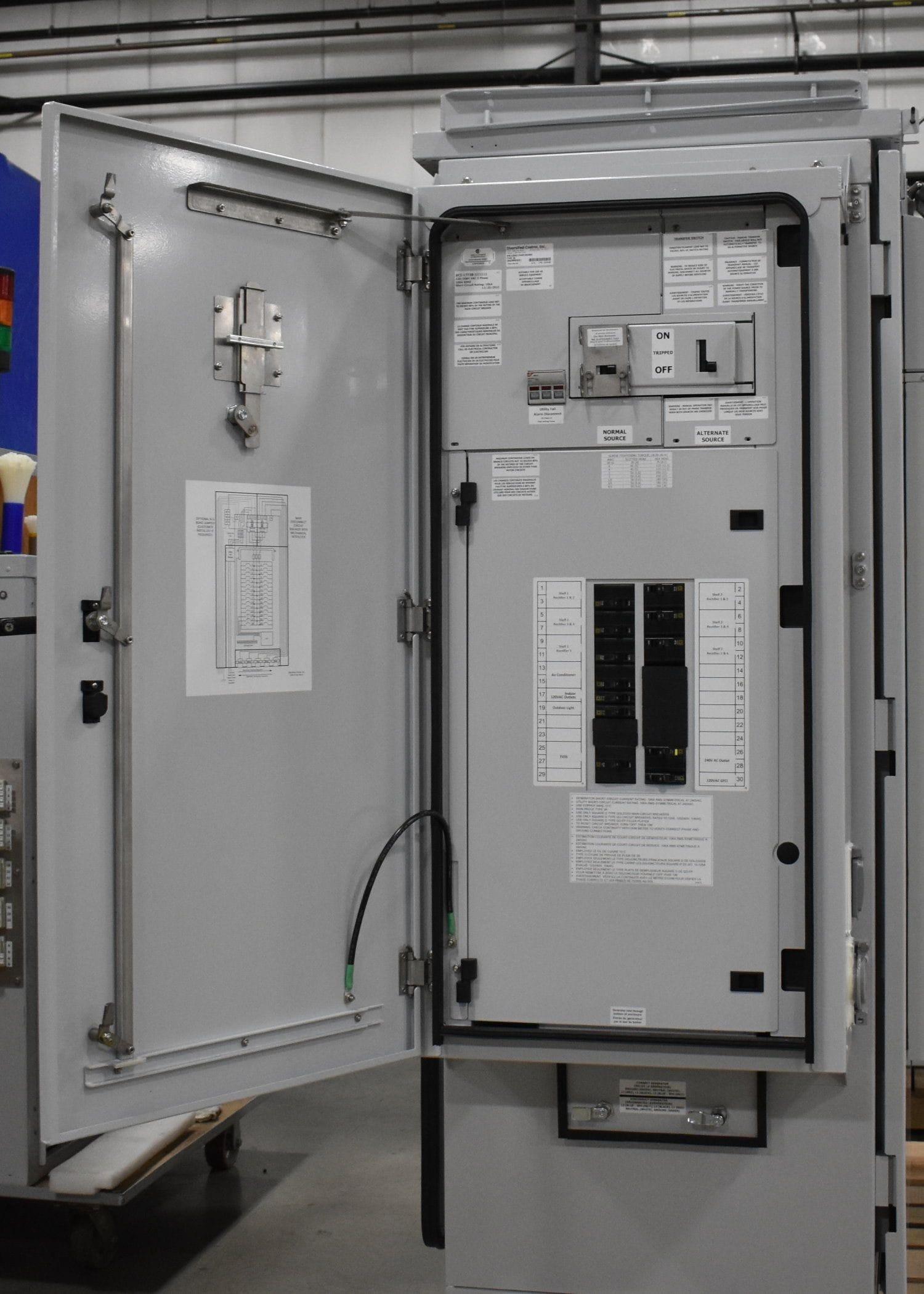

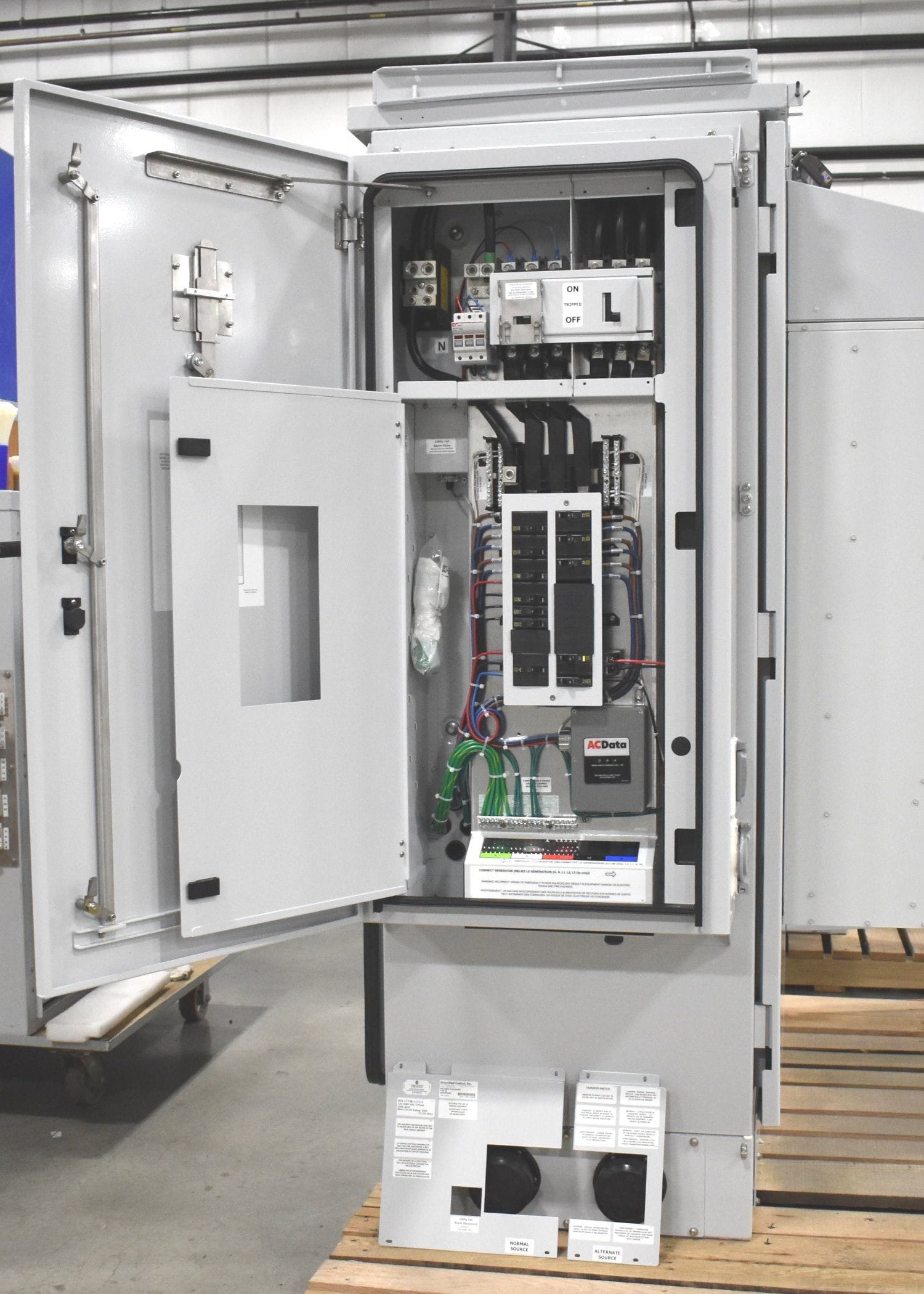

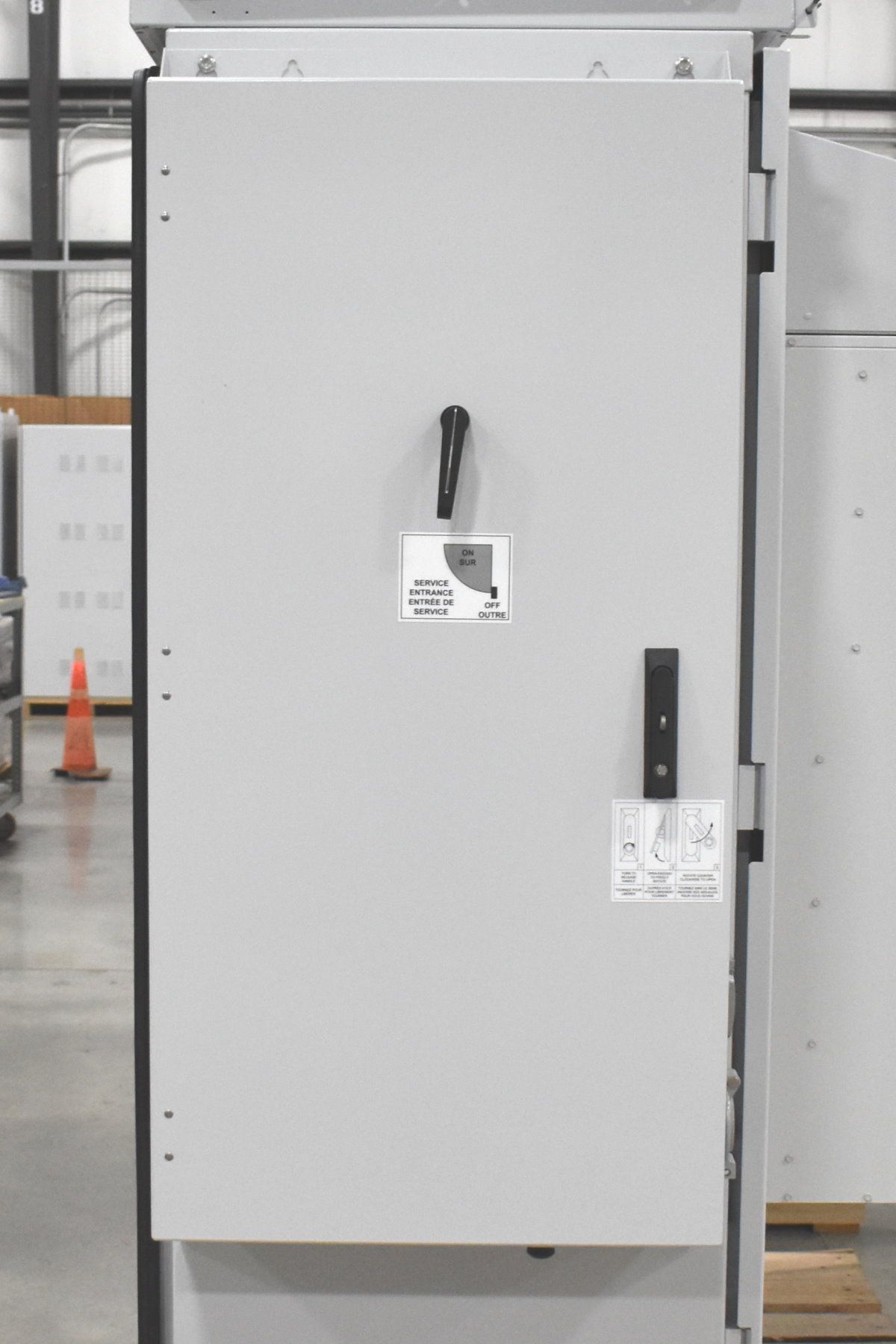

Panelboards / Service Entrance / Transfer Switches

  • Wall, Frame and Cabinet mounting options
  • Installed directly on most DCI Cell Site Enclosures
  • Factory installation and testing available
  • 100-200A Single phase or Three phase
  • Bottom feed generator connections
  • Utility service line monitoring - alarms if a service line fails
  • Surge protective device
  • 20A GFCI Convenience outlets with outdoor cover
  • 250V 30A Convenience outlet with outdoor cover on GFCI breaker
  • External shut-off (pad lockable)
